Linux搭建MongoDB分片集群

小柒博客 MongoDB1 93K12字数 8361阅读27分52秒阅读模式

一、MongoDB简介

MongoDB 是一个基于分布式文件存储的数据库。由 C++ 语言编写,旨在为 WEB 应用提供可扩展的高性能数据存储解决方案。
MongoDB 是一个介于关系数据库和非关系数据库之间的产品,是非关系数据库当中功能最丰富,最像关系数据库的。

在搭建集群之前,需要首先了解几个概念:路由,分片、副本集、配置服务器等。

相关概念

先来看一张图:

从图中可以看到有四个组件:mongos、config server、shard、replica set。

mongos,数据库集群请求的入口,所有的请求都通过mongos进行协调,不需要在应用程序添加一个路由选择器,mongos自己就是一个请求分发中心,它负责把对应的数据请求请求转发到对应的shard服务器上。在生产环境通常有多mongos作为请求的入口,防止其中一个挂掉所有的mongodb请求都没有办法操作。

config server,顾名思义为配置服务器,存储所有数据库元信息(路由、分片)的配置。mongos本身没有物理存储分片服务器和数据路由信息,只是缓存在内存里,配置服务器则实际存储这些数据。mongos第一次启动或者关掉重启就会从 config server 加载配置信息,以后如果配置服务器信息变化会通知到所有的 mongos 更新自己的状态,这样 mongos 就能继续准确路由。在生产环境通常有多个 config server 配置服务器,因为它存储了分片路由的元数据,防止数据丢失!

shard,分片(sharding)是指将数据库拆分,将其分散在不同的机器上的过程。将数据分散到不同的机器上,不需要功能强大的服务器就可以存储更多的数据和处理更大的负载。基本思想就是将集合切成小块,这些块分散到若干片里,每个片只负责总数据的一部分,最后通过一个均衡器来对各个分片进行均衡(数据迁移)。

replica set,中文翻译副本集,其实就是shard的备份,防止shard挂掉之后数据丢失。复制提供了数据的冗余备份,并在多个服务器上存储数据副本,提高了数据的可用性, 并可以保证数据的安全性。

仲裁者(Arbiter),是复制集中的一个MongoDB实例,它并不保存数据。仲裁节点使用最小的资源并且不要求硬件设备,不能将Arbiter部署在同一个数据集节点中,可以部署在其他应用服务器或者监视服务器中,也可部署在单独的虚拟机中。为了确保复制集中有奇数的投票成员(包括primary),需要添加仲裁节点做为投票,否则primary不能运行时不会自动切换primary。

简单了解之后,我们可以这样总结一下,应用请求mongos来操作mongodb的增删改查,配置服务器存储数据库元信息,并且和mongos做同步,数据最终存入在shard(分片)上,为了防止数据丢失同步在副本集中存储了一份,仲裁在数据存储到分片的时候决定存储到哪个节点。

mongodb的集群搭建方式主要有三种,主从模式,Replica set模式,sharding模式, 三种模式各有优劣,适用于不同的场合,属Replica set应用最为广泛,主从模式现在用的较少,sharding模式最为完备,但配置维护较为复杂。本文我们来看下Replica Set模式的搭建方法。

Mongodb的Replica Set即副本集方式主要有两个目的,一个是数据冗余做故障恢复使用,当发生硬件故障或者其它原因造成的宕机时,可以使用副本进行恢复。另一个是做读写分离,读的请求分流到副本上,减轻主(Primary)的读压力。

Replica Set是mongod的实例集合,它们有着同样的数据内容。包含三类角色:

1)主节点(Primary)

接收所有的写请求,然后把修改同步到所有Secondary。一个Replica Set只能有一个Primary节点,当Primary挂掉后,其他Secondary或者Arbiter节点会重新选举出来一个主节点。默认读请求也是发到Primary节点处理的,需要转发到Secondary需要客户端修改一下连接配置。

2)副本节点(Secondary)

与主节点保持同样的数据集。当主节点挂掉的时候,参与选主。

3)仲裁者(Arbiter)

不保有数据,不参与选主,只进行选主投票。使用Arbiter可以减轻数据存储的硬件需求,Arbiter跑起来几乎没什么大的硬件资源需求,但重要的一点是,在生产环境下它和其他数据节点不要部署在同一台机器上。

注意,一个自动failover的Replica Set节点数必须为奇数,目的是选主投票的时候要有一个大多数才能进行选主决策。

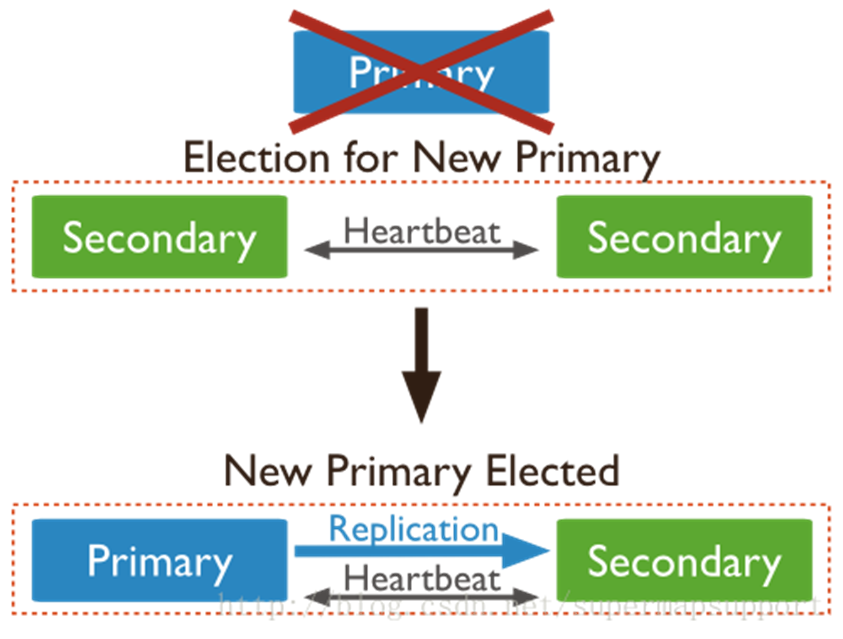

4)选主过程

其中Secondary宕机,不受影响,若Primary宕机,会进行重新选主:

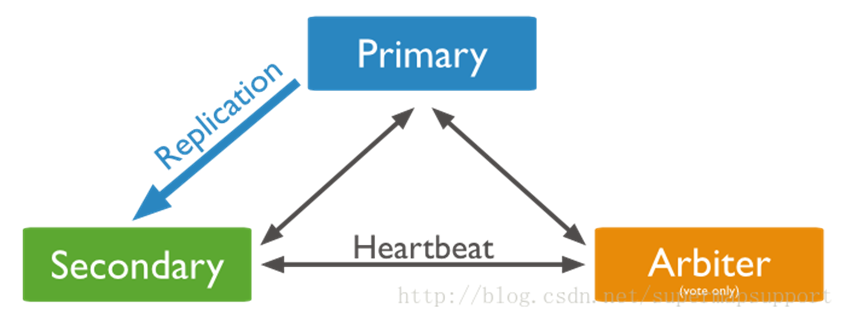

#使用Arbiter搭建Replica Set

偶数个数据节点,加一个Arbiter构成的Replica Set方式:

二、部署MongoDB分片集群

系统环境:CentOS 7.9

1、服务器规划

服务器:172.18.137.156

服务器:172.18.137.157

服务器:172.18.137.151

mongos

mongos

mongos

config server

config server

config server

shard server1 主节点

shard server1 副节点

shard server1 仲裁

shard server2 仲裁

shard server2 主节点

shard server2 副节点

shard server3 副节点

shard server3 仲裁

shard server3 主节

2、端口分配

mongos:20000

config:    21000

shard1:    27001

shard2:    27002

shard3:    27003

3、安装包准备

版本:3.4.16

下载地址:https://mirrors.yangxingzhen.com/mongodb/mongodb-linux-x86_64-rhel70-3.4.16.tgz

4、安装步骤

1)下载安装包

[root@localhost ~]# wget -c https://mirrors.yangxingzhen.com/mongodb/mongodb-linux-x86_64-rhel70-3.4.16.tgz

2)解压并更改名称

#解压

[root@localhost ~]# tar zxf mongodb-linux-x86_64-rhel70-3.4.16.tgz

#重命名

[root@localhost ~]# mv mongodb-linux-x86_64-rhel70-3.4.16 /usr/local/mongodb

3)分别在每台机器建立conf、mongos、config、shard1、shard2、shard3六个目录,因为mongos不存储数据,只需要建立日志文件目录即可

[root@localhost ~]# mkdir -p /usr/local/mongodb/conf

[root@localhost ~]# mkdir -p /usr/local/mongodb/mongos/log

[root@localhost ~]# mkdir -p /usr/local/mongodb/config/{data,log}

[root@localhost ~]# mkdir -p /usr/local/mongodb/shard1/{data,log}

[root@localhost ~]# mkdir -p /usr/local/mongodb/shard2/{data,log}

[root@localhost ~]# mkdir -p /usr/local/mongodb/shard3/{data,log}

4)配置环境变量

[root@localhost ~]# vim /etc/profile

#配置内容如下

export PATH=/usr/local/mongodb/bin:$PATH

#执行source /etc/profile使其生效

[root@localhost ~]# source /etc/profile

5、config server配置服务器(3台机器需配置)

[root@localhost ~]# vim /usr/local/mongodb/conf/config.conf

#配置文件内容

pidfilepath = /usr/local/mongodb/config/log/config.pid
dbpath = /usr/local/mongodb/config/data
logpath = /usr/local/mongodb/config/log/config.log
logappend = true
bind_ip = 0.0.0.0
port = 21000
fork = true
#declare this is a config db of a cluster;
configsvr = true
#副本集名称
replSet = configs
#设置最大连接数
maxConns = 20000
#启动三台服务器的config server服务

[root@localhost ~]# mongod -f /usr/local/mongodb/conf/config.conf

#登录任意一台配置服务器,初始化配置副本集(IP和端口根据实际情况更改)

#连接Config Server服务

[root@localhost ~]# mongo --port 21000

#config变量

> config = {

... _id : "configs",

... members : [

... {_id : 0, host : "172.18.137.156:21000" },

... {_id : 1, host : "172.18.137.157:21000" },

... {_id : 2, host : "172.18.137.151:21000" }

... ]

... }

#初始化副本集

> rs.initiate(config)

6、配置分片副本集

设置第一个分片副本集(3台机器需配置)

[root@localhost ~]# vim /usr/local/mongodb/conf/shard1.conf

#配置文件内容

pidfilepath = /usr/local/mongodb/shard1/log/shard1.pid
dbpath = /usr/local/mongodb/shard1/data
logpath = /usr/local/mongodb/shard1/log/shard1.log
logappend = true
bind_ip = 0.0.0.0
port = 27001
fork = true
#打开web监控
httpinterface = true
rest=true
#副本集名称
replSet = shard1
#declare this is a shard db of a cluster;
shardsvr = true
#设置最大连接数
maxConns = 20000

#启动三台服务器的shard1 server服务

[root@localhost ~]# mongod -f /usr/local/mongodb/conf/shard1.conf

#登陆任意一台服务器,初始化副本集

[root@localhost ~]# mongo --port 27001

#使用admin数据库

> use admin

#定义副本集配置,第三个节点的 "arbiterOnly":true 代表其为仲裁节点。(需在非仲裁节点机器执行)

> config = {

... _id : "shard1",

... members : [

... {_id : 0, host : "172.18.137.156:27001" },

... {_id : 1, host : "172.18.137.157:27001" },

... {_id : 2, host : "172.18.137.151:27001" , arbiterOnly: true }

... ]

... }

#初始化副本集配置

mongos> rs.initiate(config)

1)设置第二个分片副本集(3台机器需配置)

[root@localhost ~]# vim /usr/local/mongodb/conf/shard2.conf

#配置文件内容

pidfilepath = /usr/local/mongodb/shard2/log/shard2.pid
dbpath = /usr/local/mongodb/shard2/data
logpath = /usr/local/mongodb/shard2/log/shard2.log
logappend = true
bind_ip = 0.0.0.0
port = 27002
fork = true
#打开web监控
httpinterface = true
rest = true
#副本集名称
replSet = shard2
#declare this is a shard db of a cluster;
shardsvr = true
#设置最大连接数
maxConns = 20000
#启动三台服务器的shard2 server 服务

[root@localhost ~]# mongod -f /usr/local/mongodb/conf/shard2.conf

#登陆任意一台服务器,初始化副本集

[root@localhost ~]# mongo --port 27002

#使用admin数据库

> use admin

#定义副本集配置,第一个节点的 "arbiterOnly":true 代表其为仲裁节点。(需在非仲裁节点机器执行)

> config = {

... _id : "shard2",

... members : [

... {_id : 0, host : "172.18.137.156:27002" , arbiterOnly: true },

... {_id : 1, host : "172.18.137.157:27002" },

... {_id : 2, host : "172.18.137.151:27002" }

... ]

... }

#初始化副本集配置

> rs.initiate(config)

2)设置第三个分片副本集(3台机器需执行)

[root@localhost ~]# vim /usr/local/mongodb/conf/shard3.conf

#配置文件内容

pidfilepath = /usr/local/mongodb/shard3/log/shard3.pid
dbpath = /usr/local/mongodb/shard3/data
logpath = /usr/local/mongodb/shard3/log/shard3.log
logappend = true
bind_ip = 0.0.0.0
port = 27003
fork = true
#打开web监控
httpinterface = true
rest = true
#副本集名称
replSet = shard3
#declare this is a shard db of a cluster;
shardsvr = true
#设置最大连接数
maxConns = 20000

#启动三台服务器的shard3 server服务

[root@localhost ~]# mongod -f /usr/local/mongodb/conf/shard3.conf

#登陆任意一台服务器,初始化副本集

[root@localhost ~]# mongo --port 27003

#使用admin数据库

> use admin

#定义副本集配置,第二个节点的 "arbiterOnly":true 代表其为仲裁节点。(需在非仲裁节点机器执行)

> config = {

... _id : "shard3",

... members : [

... {_id : 0, host : "172.18.137.156:27003" },

... {_id : 1, host : "172.18.137.157:27003" , arbiterOnly: true},

... {_id : 2, host : "172.18.137.151:27003" }

... ]

... }

#初始化副本集配置

> rs.initiate(config)

7、配置路由服务器 mongos服务(三台机器需配置)

[root@localhost ~]# vim /usr/local/mongodb/conf/mongos.conf

#配置内容如下

pidfilepath = /usr/local/mongodb/mongos/log/mongos.pid
logpath = /usr/local/mongodb/mongos/log/mongos.log
logappend = true
bind_ip = 0.0.0.0
port = 20000
fork = true
#监听的配置服务器,只能有1个或者3个 configs为配置服务器的副本集名字
configdb = configs/172.18.137.156:21000,172.18.137.157:21000,172.18.137.151:21000
#设置最大连接数
maxConns = 20000

#启动三台服务器的mongos server服务

[root@localhost ~]# mongos -f /usr/local/mongodb/conf/mongos.conf

8、启用分片(其中IP根据实际情况更改)

#登陆任意一台mongos

[root@localhost ~]# mongo --port 20000

#使用admin数据库

mongos> use admin

#串联路由服务器与分配副本集

mongos> sh.addShard("shard1/172.18.137.156:27001,172.18.137.157:27001,172.18.137.151:27001")

mongos> sh.addShard("shard2/172.18.137.156:27002,172.18.137.157:27002,172.18.137.151:27002")

mongos> sh.addShard("shard3/172.18.137.156:27003,172.18.137.157:27003,172.18.137.151:27003")

#查看集群状态

mongos> sh.status()

9、配置分片

设置test的 table1 表需要分片,根据 id 自动分片到 shard1 ,shard2,shard3 上面去

#指定test分片生效

[root@localhost ~]# mongo --port 20000

mongos> use admin

mongos> db.runCommand({enablesharding :"test"})

#指定数据库里需要分片的集合和片键(先不开启,后期需要开启)

mongos> db.runCommand({shardcollection : "test.table1",key : {_id: 1}})

mongos> db.runCommand({shardcollection : "test.driverPoint",key : {_id: 1}})

测试分片配置结果

[root@localhost ~]# mongo --port 20000

#使用test

mongos> use test

#插入测试数据

mongos> for (var i = 1; i <= 100; i++) db.table1.save({id:i,"test1":"testval1"})

#查看分片情况如下,部分无关信息省掉了

mongos> db.table1.stats()

{

"sharded" : true,

"ns" : "test.table1",

"count" : 100,

"numExtents" : 13,

"size" : 5600,

"storageSize" : 22372352,

"totalIndexSize" : 6213760,

"indexSizes" : {

"_id_" : 3335808,

"id_1" : 2877952

},

"avgObjSize" : 56,

"nindexes" : 2,

"nchunks" : 3,

"shards" : {

"shard1" : {

"ns" : "test.table1",

"count" : 45,

"size" :2311,

...

"ok" : 1

},

"shard2" : {

"ns" : "test.table1",

"count" : 27,

     "size" : 1180,

...

"ok" : 1

},

"shard3" : {

"ns" : "test.table1",

"count" :28,

"size" : 1219,

...

"ok" : 1

}

},

"ok" : 1

}

可以看到数据分到3个分片,各自分片数量为: shard1 "count" : 45,shard2 "count" : 27,shard3 "count" : 28。已经成功了!

服务器启动顺序:先启动配置服务器和分片服务器,后启动路由实例启动路由实例:(三台机器)
