kubernetes部署ELK-7.17.6集群及配置X-Pack认证

一、ELK简介

ELK是三个开源软件的缩写，分别表示：Elasticsearch , Logstash, Kibana , 它们都是开源软件。新增了一个FileBeat，它是一个轻量级的日志收集处理工具(Agent)，Filebeat占用资源少，适合于在各个服务器上搜集日志后传输给Logstash，官方也推荐此工具。

1、Elasticsearch是个开源分布式搜索引擎，提供搜集、分析、存储数据三大功能。它的特点有：分布式，零配置，自动发现，索引自动分片，索引副本机制，restful风格接口，多数据源，自动搜索负载等。

2、Logstash 主要是用来日志的搜集、分析、过滤日志的工具，支持大量的数据获取方式。一般工作方式为c/s架构，client端安装在需要收集日志的主机上，server端负责将收到的各节点日志进行过滤、修改等操作在一并发往elasticsearch上去。

3、Kibana 也是一个开源和免费的工具，Kibana可以为 Logstash 和 ElasticSearch 提供的日志分析友好的 Web 界面，可以帮助汇总、分析和搜索重要数据日志。

4、Filebeat隶属于Beats。目前Beats包含四种工具：

1）Packetbeat（搜集网络流量数据）

2）Topbeat（搜集系统、进程和文件系统级别的CPU和内存使用情况等数据）

3）Filebeat（搜集文件数据）

4）Winlogbeat（搜集Windows事件日志数据）

二、系统架构

注意点：配置文件中hostname修改成自己的

三、创建StorageClass、Namespace

1、创建StorageClass

[root@cmp-k8s-dev-node01 ~]# mkdir -p /data/{master,kibana,zookeeper,kafka}

[root@cmp-k8s-dev-node02 ~]# mkdir -p /data/{master,kibana,zookeeper,kafka}

[root@cmp-k8s-dev-node03 ~]# mkdir -p /data/{master,kibana,zookeeper,kafka}

[root@cmp-k8s-dev-node01 ~]# mkdir kube-elasticsearch && cd kube-elasticsearch

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-storageclass.yaml

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: elasticsearch-storage
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: WaitForFirstConsumer

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-storageclass.yaml

2、创建Namespace

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: kube-elasticsearch
  labels:
    app: elasticsearch

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-namespace.yaml

3、创建证书

参考：https://github.com/elastic/helm-charts/blob/master/elasticsearch/examples/security/Makefile#L24-L35

[root@cmp-k8s-dev-master01 kube-elasticsearch]# docker run --name elastic-certs -i -w /tmp docker.elastic.co/elasticsearch/elasticsearch:7.17.6 /bin/sh -c \

    "elasticsearch-certutil ca --out /tmp/es-ca.p12 --pass '' && \

    elasticsearch-certutil cert --name security-master --dns \

    security-master --ca /tmp/es-ca.p12 --pass '' --ca-pass '' --out /tmp/elastic-certificates.p12"

[root@cmp-k8s-dev-master01 kube-elasticsearch]# docker cp elastic-certs:/tmp/elastic-certificates.p12 ./

4、创建ssl认证要使用的secret

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl -n kube-elasticsearch create secret generic elastic-certificates --from-file=./elastic-certificates.p12

四、部署Elasticsearch集群

1、创建3个Master节点的PV

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-pv-master.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-pv-0
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-pv-0
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/master
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node01
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-pv-1
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-pv-1
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/master
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node02
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-pv-2
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-pv-2
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/master
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node03

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-pv-master.yaml

persistentvolume/local-elasticsearch-pv-0 created

persistentvolume/local-elasticsearch-pv-1 created

persistentvolume/local-elasticsearch-pv-2 created

2、创建Elasticsearch的StatefulSet

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-master-deploy.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  namespace: kube-elasticsearch
  name: elasticsearch-master
  labels:
    app: elasticsearch
    role: master
spec:
  serviceName: elasticsearch-master
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
      role: master
  template:
    metadata:
      labels:
        app: elasticsearch
        role: master
    spec:
      containers:
        - name: elasticsearch
          image: elasticsearch:7.17.6
          command: ["bash", "-c", "ulimit -l unlimited && sysctl -w vm.max_map_count=262144 && chown -R elasticsearch:elasticsearch /usr/share/elasticsearch/data && exec su elasticsearch docker-entrypoint.sh"]
          ports:
            - containerPort: 9200
              name: http
            - containerPort: 9300
              name: transport
          env:
            - name: discovery.seed_hosts
              value: "elasticsearch-master-0.elasticsearch-master,elasticsearch-master-1.elasticsearch-master,elasticsearch-master-2.elasticsearch-master"
            - name: cluster.initial_master_nodes
              value: "elasticsearch-master-0,elasticsearch-master-1,elasticsearch-master-2"
            - name: ES_JAVA_OPTS
              value: -Xms512m -Xmx512m
            - name: node.master
              value: "true"
            - name: node.ingest
              value: "true"
            - name: node.data
              value: "true"
            - name: cluster.name
              value: "elasticsearch"
            - name: node.name
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: xpack.security.enabled
              value: "true"
            - name: xpack.security.transport.ssl.enabled
              value: "true"
            - name: xpack.monitoring.collection.enabled
              value: "true"
            - name: xpack.security.transport.ssl.verification_mode
              value: "certificate"
            - name: xpack.security.transport.ssl.keystore.path
              value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
            - name: xpack.security.transport.ssl.truststore.path
              value: "/usr/share/elasticsearch/config/elastic-certificates.p12"

          volumeMounts:
           - mountPath: /usr/share/elasticsearch/data
             name: elasticsearch-pv-master
           - name: elastic-certificates
             readOnly: true
             mountPath: "/usr/share/elasticsearch/config/elastic-certificates.p12"
             subPath: elastic-certificates.p12
           - mountPath: /etc/localtime
             name: localtime
          securityContext:
            privileged: true
      volumes:
      - name: elastic-certificates
        secret:
          secretName: elastic-certificates
      - hostPath:
          path: /etc/localtime
        name: localtime

  volumeClaimTemplates:
  - metadata:
      name: elasticsearch-pv-master
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "elasticsearch-storage"
      resources:
        requests:
          storage: 10Gi

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-master-deploy.yaml

statefulset.apps/elasticsearch-master created

3、创建ES集群的Service

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-svc.yaml

apiVersion: v1
kind: Service
metadata:
  namespace: kube-elasticsearch
  name: elasticsearch-master
  labels:
    app: elasticsearch
    role: master
spec:
  selector:
    app: elasticsearch
    role: master
  type: NodePort
  ports:
  - port: 9200
    nodePort: 30000
    targetPort: 9200

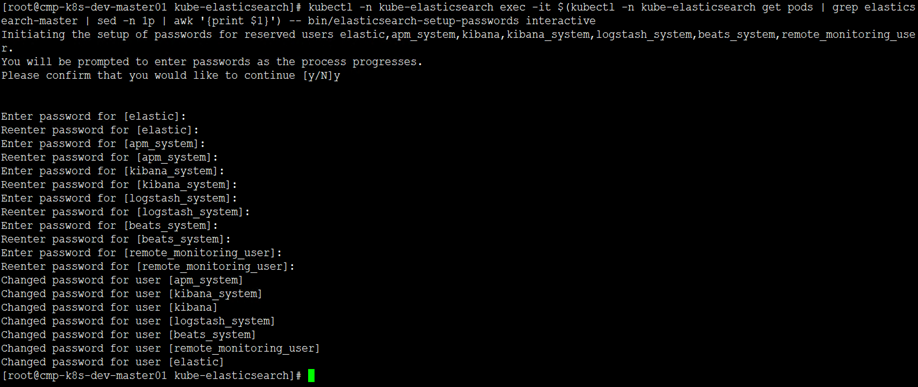

4、配置ES集群密码

方式一：自动生成随机密码并打印终端

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl -n kube-elasticsearch exec -it $(kubectl -n kube-elasticsearch get pods | grep elasticsearch-master | sed -n 1p | awk '{print $1}') -- bin/elasticsearch-setup-passwords auto -b

方式二：自行配置密码

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl -n kube-elasticsearch exec -it $(kubectl -n kube-elasticsearch get pods | grep elasticsearch-master | sed -n 1p | awk '{print $1}') -- bin/elasticsearch-setup-passwords interactive

# 为了测试方便，密码设置为Aa123456

注意：自行选择一种配置密码方式，请牢记上面的密码，后面需要用到。

五、部署Kibana

1、创建secret，用于存储ES密码

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl -n kube-elasticsearch create secret generic elasticsearch-password --from-literal password=Aa123456

2、创建Kibana的Configmap

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-kibana-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: kube-elasticsearch
  name: kibana-config
  labels:
    app: kibana
data:
  kibana.yml: |-
    server.host: 0.0.0.0
    elasticsearch:
      hosts: ${ELASTICSEARCH_HOSTS}
      username: ${ELASTICSEARCH_USER}
      password: ${ELASTICSEARCH_PASSWORD}

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kibana-configmap.yaml

3、创建Kibana的Deployment

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-kibana-deploy.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: kibana
  name: kibana
  namespace: kube-elasticsearch
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
        - name: kibana
          image: kibana:7.17.6
          ports:
            - containerPort: 5601
              protocol: TCP
          env:
            - name: SERVER_PUBLICBASEURL
              value: "http://0.0.0.0:5601"
            - name: I18N.LOCALE
              value: zh-CN
            - name: ELASTICSEARCH_HOSTS
              value: "http://elasticsearch-master:9200"
            - name: ELASTICSEARCH_USER
              value: "elastic"
            - name: ELASTICSEARCH_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: elasticsearch-password
                  key: password
            - name: xpack.encryptedSavedObjects.encryptionKey
              value: "min-32-byte-long-strong-encryption-key"

          volumeMounts:
          - name: kibana-config
            mountPath: /usr/share/kibana/config/kibana.yml
            readOnly: true
            subPath: kibana.yml
          - mountPath: /etc/localtime
            name: localtime
      volumes:
      - name: kibana-config
        configMap:
          name: kibana-config
      - hostPath:
          path: /etc/localtime
        name: localtime

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kibana-deploy.yaml

4、创建Kibana的Service

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-kibana-svc.yaml

kind: Service
apiVersion: v1
metadata:
  labels:
    app: kibana
  name: kibana-service
  namespace: kube-elasticsearch
spec:
  ports:
  - port: 5601
    targetPort: 5601
    nodePort: 30002
  type: NodePort
  selector:
    app: kibana

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kibana-svc.yaml

六、部署Zookeepe集群

1、创建Zookeeper的PV

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-zookeeper-pv.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-zk-0
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-zk-0
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/zookeeper
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node01
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-zk-1
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-zk-1
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/zookeeper
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node02
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-zk-2
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-zk-2
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/zookeeper
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node03

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-zookeeper-pv.yaml

persistentvolume/local-elasticsearch-zk-0 created

persistentvolume/local-elasticsearch-zk-1 created

persistentvolume/local-elasticsearch-zk-2 created

2、创建Zookeeper的PodDisruptionBudget

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-zookeeper-pdb.yaml

apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
  name: zookeeper-pdb
  namespace: kube-elasticsearch
spec:
  selector:
    matchLabels:
      app: zookeeper
  minAvailable: 2

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-zookeeper-pdb.yaml

poddisruptionbudget.policy/zookeeper-pdb created

3、创建Zookeeper的PV

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-zookeeper-svc.yaml

apiVersion: v1
kind: Service
metadata:
  name: zookeeper
  namespace: kube-elasticsearch
  labels:
    app: zookeeper
spec:
  type: NodePort
  ports:
  - port: 2181
    nodePort: 30004
    targetPort: 2181
  selector:
    app: zookeeper

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-zookeeper-svc.yaml

service/zookeeper created

4、创建Zookeeper的StatefulSet

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-zookeeper-deploy.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: zookeeper
  namespace: kube-elasticsearch
spec:
  selector:
    matchLabels:
      app: zookeeper
  serviceName: zookeeper
  replicas: 3
  updateStrategy:
    type: RollingUpdate
  podManagementPolicy: Parallel
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: zookeeper
    spec:
      containers:
      - name: kubernetes-zookeeper
        imagePullPolicy: IfNotPresent
        image: "mirrorgooglecontainers/kubernetes-zookeeper:1.0-3.4.10"
        ports:
        - containerPort: 2181
          name: client
        - containerPort: 2888
          name: server
        - containerPort: 3888
          name: leader-election
        command:
        - sh
        - -c
        - "start-zookeeper \
          --servers=3 \
          --data_dir=/var/lib/zookeeper/data \
          --data_log_dir=/var/lib/zookeeper/data/log \
          --conf_dir=/opt/zookeeper/conf \
          --client_port=2181 \
          --election_port=3888 \
          --server_port=2888 \
          --tick_time=2000 \
          --init_limit=10 \
          --sync_limit=5 \
          --heap=512M \
          --max_client_cnxns=60 \
          --snap_retain_count=3 \
          --purge_interval=12 \
          --max_session_timeout=40000 \
          --min_session_timeout=4000 \
          --log_level=INFO"
        readinessProbe:
          exec:
            command:
            - sh
            - -c
            - "zookeeper-ready 2181"
          initialDelaySeconds: 10
          timeoutSeconds: 5
        livenessProbe:
          exec:
            command:
            - sh
            - -c
            - "zookeeper-ready 2181"
          initialDelaySeconds: 10
          timeoutSeconds: 5
        volumeMounts:
        - name: zookeeper
          mountPath: /var/lib/zookeeper
      securityContext:
        runAsUser: 1000
        fsGroup: 1000
  volumeClaimTemplates:
  - metadata:
      name: zookeeper
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "elasticsearch-storage"
      resources:
        requests:
          storage: 1Gi

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-zookeeper-deploy.yaml

statefulset.apps/zookeeper created

七、部署Kafka集群

1、创建kafka的PV

[root@cmp-k8s-dev-master01 kube-elasticsearch]# cat 00-pv-kafka.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-kafka-0
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-kafka-0
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/kafka
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node01
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-kafka-1
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-kafka-1
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/kafka
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node02
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-elasticsearch-kafka-2
  namespace: kube-elasticsearch
  labels:
    name: local-elasticsearch-kafka-2
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: elasticsearch-storage
  local:
    path: /data/kafka
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - cmp-k8s-dev-node03

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kafka-pv.yaml

persistentvolume/local-elasticsearch-kafka-0 created

persistentvolume/local-elasticsearch-kafka-1 created

persistentvolume/local-elasticsearch-kafka-2 created

2、创建Kafka的PodDisruptionBudget

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-kafka-pdb.yaml

apiVersion: policy/v1beta1
kind: PodDisruptionBudget
metadata:
  name: kafka-pdb
  namespace: kube-elasticsearch
spec:
  selector:
    matchLabels:
      app: kafka
  maxUnavailable: 1

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kafka-pdb.yaml

poddisruptionbudget.policy/kafka-pdb created

3、创建Kafka的Service

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-kafka-svc.yaml

apiVersion: v1
kind: Service
metadata:
  name: kafka
  namespace: kube-elasticsearch
  labels:
    app: kafka
spec:
  type: NodePort
  ports:
  - port: 9092
    nodePort: 30001
    targetPort: 9092
  selector:
    app: kafka

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kafka-svc.yaml

service/kafka created

4、创建Kafka的StatefulSet

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-kafka-deploy.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: kafka
  namespace: kube-elasticsearch
spec:
  selector:
     matchLabels:
        app: kafka
  serviceName: kafka
  replicas: 3
  template:
    metadata:
      labels:
        app: kafka
    spec:
      terminationGracePeriodSeconds: 300
      containers:
      - name: k8s-kafka
        imagePullPolicy: IfNotPresent
        image: fastop/kafka:2.2.0
        resources:
          requests:
            memory: "600Mi"
            cpu: 500m
        ports:
        - containerPort: 9092
          name: server
        command:
        - sh
        - -c
        - "exec kafka-server-start.sh /opt/kafka/config/server.properties --override broker.id=${HOSTNAME##*-} \
          --override listeners=PLAINTEXT://:9092 \
          --override zookeeper.connect=zookeeper.kube-elasticsearch.svc.cluster.local:2181 \
          --override log.dir=/var/lib/kafka \
          --override auto.create.topics.enable=true \
          --override auto.leader.rebalance.enable=true \
          --override background.threads=10 \
          --override compression.type=producer \
          --override delete.topic.enable=false \
          --override leader.imbalance.check.interval.seconds=300 \
          --override leader.imbalance.per.broker.percentage=10 \
          --override log.flush.interval.messages=9223372036854775807 \
          --override log.flush.offset.checkpoint.interval.ms=60000 \
          --override log.flush.scheduler.interval.ms=9223372036854775807 \
          --override log.retention.bytes=-1 \
          --override log.retention.hours=168 \
          --override log.roll.hours=168 \
          --override log.roll.jitter.hours=0 \
          --override log.segment.bytes=1073741824 \
          --override log.segment.delete.delay.ms=60000 \
          --override message.max.bytes=1000012 \
          --override min.insync.replicas=1 \
          --override num.io.threads=8 \
          --override num.network.threads=3 \
          --override num.recovery.threads.per.data.dir=1 \
          --override num.replica.fetchers=1 \
          --override offset.metadata.max.bytes=4096 \
          --override offsets.commit.required.acks=-1 \
          --override offsets.commit.timeout.ms=5000 \
          --override offsets.load.buffer.size=5242880 \
          --override offsets.retention.check.interval.ms=600000 \
          --override offsets.retention.minutes=1440 \
          --override offsets.topic.compression.codec=0 \
          --override offsets.topic.num.partitions=50 \
          --override offsets.topic.replication.factor=3 \
          --override offsets.topic.segment.bytes=104857600 \
          --override queued.max.requests=500 \
          --override quota.consumer.default=9223372036854775807 \
          --override quota.producer.default=9223372036854775807 \
          --override replica.fetch.min.bytes=1 \
          --override replica.fetch.wait.max.ms=500 \
          --override replica.high.watermark.checkpoint.interval.ms=5000 \
          --override replica.lag.time.max.ms=10000 \
          --override replica.socket.receive.buffer.bytes=65536 \
          --override replica.socket.timeout.ms=30000 \
          --override request.timeout.ms=30000 \
          --override socket.receive.buffer.bytes=102400 \
          --override socket.request.max.bytes=104857600 \
          --override socket.send.buffer.bytes=102400 \
          --override unclean.leader.election.enable=true \
          --override zookeeper.session.timeout.ms=6000 \
          --override zookeeper.set.acl=false \
          --override broker.id.generation.enable=true \
          --override connections.max.idle.ms=600000 \
          --override controlled.shutdown.enable=true \
          --override controlled.shutdown.max.retries=3 \
          --override controlled.shutdown.retry.backoff.ms=5000 \
          --override controller.socket.timeout.ms=30000 \
          --override default.replication.factor=1 \
          --override fetch.purgatory.purge.interval.requests=1000 \
          --override group.max.session.timeout.ms=300000 \
          --override group.min.session.timeout.ms=6000 \
          --override inter.broker.protocol.version=2.2.0 \
          --override log.cleaner.backoff.ms=15000 \
          --override log.cleaner.dedupe.buffer.size=134217728 \
          --override log.cleaner.delete.retention.ms=86400000 \
          --override log.cleaner.enable=true \
          --override log.cleaner.io.buffer.load.factor=0.9 \
          --override log.cleaner.io.buffer.size=524288 \
          --override log.cleaner.io.max.bytes.per.second=1.7976931348623157E308 \
          --override log.cleaner.min.cleanable.ratio=0.5 \
          --override log.cleaner.min.compaction.lag.ms=0 \
          --override log.cleaner.threads=1 \
          --override log.cleanup.policy=delete \
          --override log.index.interval.bytes=4096 \
          --override log.index.size.max.bytes=10485760 \
          --override log.message.timestamp.difference.max.ms=9223372036854775807 \
          --override log.message.timestamp.type=CreateTime \
          --override log.preallocate=false \
          --override log.retention.check.interval.ms=300000 \
          --override max.connections.per.ip=2147483647 \
          --override num.partitions=4 \
          --override producer.purgatory.purge.interval.requests=1000 \
          --override replica.fetch.backoff.ms=1000 \
          --override replica.fetch.max.bytes=1048576 \
          --override replica.fetch.response.max.bytes=10485760 \
          --override reserved.broker.max.id=1000 "
        env:
        - name: KAFKA_HEAP_OPTS
          value : "-Xmx512M -Xms512M"
        - name: KAFKA_OPTS
          value: "-Dlogging.level=INFO"
        volumeMounts:
        - name: kafka
          mountPath: /var/lib/kafka
        readinessProbe:
          tcpSocket:
            port: 9092
          timeoutSeconds: 1
          initialDelaySeconds: 5
      securityContext:
        runAsUser: 1000
        fsGroup: 1000
  volumeClaimTemplates:
  - metadata:
      name: kafka
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "elasticsearch-storage"
      resources:
        requests:
          storage: 1Gi

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-kafka-deploy.yaml

statefulset.apps/kafka configured

5、测试Kafka

1）通过Zookeeper查看broker

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl exec -it zookeeper-1 -n kube-elasticsearch -- bash

zookeeper@zookeeper-1:/$ zkCli.sh

[zk: localhost:2181(CONNECTED) 0] get /brokers/ids/0

{"listener_security_protocol_map":{"PLAINTEXT":"PLAINTEXT"},"endpoints":["PLAINTEXT://kafka-0.kafka.kube-elasticsearch.svc.cluster.local:9092"],"jmx_port":-1,"host":"kafka-0.kafka.kube-elasticsearch.svc.cluster.local","timestamp":"1666318702856","port":9092,"version":4}

cZxid = 0x100000051

ctime = Fri Oct 21 02:18:15 UTC 2022

mZxid = 0x100000051

mtime = Fri Oct 21 02:18:15 UTC 2022

pZxid = 0x100000051

cversion = 0

dataVersion = 1

aclVersion = 0

ephemeralOwner = 0x183f8472ae40000

dataLength = 270

numChildren = 0

[zk: localhost:2181(CONNECTED) 1] get /brokers/ids/1

{"listener_security_protocol_map":{"PLAINTEXT":"PLAINTEXT"},"endpoints":["PLAINTEXT://kafka-1.kafka.kube-elasticsearch.svc.cluster.local:9092"],"jmx_port":-1,"host":"kafka-1.kafka.kube-elasticsearch.svc.cluster.local","timestamp":"1666318713387","port":9092,"version":4}

cZxid = 0x100000063

ctime = Fri Oct 21 02:18:25 UTC 2022

mZxid = 0x100000063

mtime = Fri Oct 21 02:18:25 UTC 2022

pZxid = 0x100000063

cversion = 0

dataVersion = 1

aclVersion = 0

ephemeralOwner = 0x183f8472ae40001

dataLength = 270

numChildren = 0

[zk: localhost:2181(CONNECTED) 2] get /brokers/ids/2

{"listener_security_protocol_map":{"PLAINTEXT":"PLAINTEXT"},"endpoints":["PLAINTEXT://kafka-2.kafka.kube-elasticsearch.svc.cluster.local:9092"],"jmx_port":-1,"host":"kafka-2.kafka.kube-elasticsearch.svc.cluster.local","timestamp":"1666318715645","port":9092,"version":4}

cZxid = 0x100000073

ctime = Fri Oct 21 02:18:35 UTC 2022

mZxid = 0x100000073

mtime = Fri Oct 21 02:18:35 UTC 2022

pZxid = 0x100000073

cversion = 0

dataVersion = 1

aclVersion = 0

ephemeralOwner = 0x183f8472ae40002

dataLength = 270

numChildren = 0

2）Kafka生产消费测试

# 创建topic

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl exec -it kafka-0 -n kube-elasticsearch -- bash

kafka@kafka-0:/$ cd /opt/kafka/bin

kafka@kafka-0:/opt/kafka/bin$ ./kafka-topics.sh --create --topic test --zookeeper zookeeper.kube-elasticsearch.svc.cluster.local:2181 --partitions 3 --replication-factor 3

Created topic test.

kafka@kafka-0:/opt/kafka/bin$ ./kafka-topics.sh --list --zookeeper zookeeper.kube-elasticsearch.svc.cluster.local:2181

test

# 生产消息

kafka@kafka-0:/opt/kafka/bin$ ./kafka-console-producer.sh --topic test --broker-list kafka-0.kafka.kube-elasticsearch.svc.cluster.local:9092

>123

>456

>789

# 起一个终端消费消息

kafka@kafka-0:/opt/kafka/bin$ ./kafka-console-consumer.sh --bootstrap-server kafka-0.kafka.kube-elasticsearch.svc.cluster.local:9092 --topic test --from-beginning

123

456

789

从以上结果看出消费是正常的！

八、部署Filebeat

注：Filebeat使用DemoSet，并且是自动发现日志模式

1、创建Filebeat的configmap

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-filebeat-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-config
  namespace: kube-elasticsearch
  labels:
    k8s-app: filebeat
data:
  filebeat.yml: |
    filebeat.inputs:
    - type: container
      paths:
        - '/var/lib/docker/containers/*/*.log'
      processors:
        - add_kubernetes_metadata:
            host: ${NODE_NAME}
            matchers:
            - logs_path:
                logs_path: "/var/lib/docker/containers/"
    processors:
      - add_cloud_metadata:
      - add_host_metadata:
    output:
      kafka:
        enabled: true
        hosts: ["kafka-0.kafka.kube-elasticsearch.svc.cluster.local:9092","kafka-1.kafka.kube-elasticsearch.svc.cluster.local:9092","kafka-2.kafka.kube-elasticsearch.svc.cluster.local:9092"]
        topic: "filebeat"
        max_message_bytes: 5242880

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-filebeat-configmap.yaml

configmap/filebeat-config created

2、创建Filebeat的DaemonSet

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-filebeat-daemonset.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: filebeat
  namespace: kube-elasticsearch
  labels:
    k8s-app: filebeat
spec:
  selector:
    matchLabels:
      k8s-app: filebeat
  template:
    metadata:
      labels:
        k8s-app: filebeat
    spec:
      serviceAccountName: filebeat
      terminationGracePeriodSeconds: 30
      hostNetwork: true
      dnsPolicy: ClusterFirstWithHostNet
      containers:
      - name: filebeat
        image: docker.elastic.co/beats/filebeat:7.17.6
        args: [
          "-c", "/etc/filebeat.yml",
          "-e",
        ]
        env:
        - name: NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        securityContext:
          runAsUser: 0
        resources:
          limits:
            memory: 200Mi
          requests:
            cpu: 100m
            memory: 100Mi
        volumeMounts:
        - name: config
          mountPath: /etc/filebeat.yml
          readOnly: true
          subPath: filebeat.yml
        - name: data
          mountPath: /usr/share/filebeat/data
        - name: varlibdockercontainers
          mountPath: /var/lib/docker/containers
          readOnly: true
      volumes:
      - name: config
        configMap:
          defaultMode: 0640
          name: filebeat-config
      - name: varlibdockercontainers
        hostPath:
          path: /var/lib/docker/containers
      - name: data
        hostPath:
          path: /var/lib/filebeat-data
          type: DirectoryOrCreate

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-filebeat-daemonset.yaml

daemonset.apps/filebeat created

3、创建Filebeat的ClusterRoleBinding

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-filebeat-rbac.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: filebeat
subjects:
- kind: ServiceAccount
  name: filebeat
  namespace: kube-elasticsearch
roleRef:
  kind: ClusterRole
  name: filebeat
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: filebeat
  namespace: kube-elasticsearch
subjects:
  - kind: ServiceAccount
    name: filebeat
    namespace: kube-elasticsearch
roleRef:
  kind: Role
  name: filebeat
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: filebeat-kubeadm-config
  namespace: kube-elasticsearch
subjects:
  - kind: ServiceAccount
    name: filebeat
    namespace: kube-elasticsearch
roleRef:
  kind: Role
  name: filebeat-kubeadm-config
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: filebeat
  labels:
    k8s-app: filebeat
rules:
- apiGroups: [""] # "" indicates the core API group
  resources:
  - namespaces
  - pods
  - nodes
  verbs:
  - get
  - watch
  - list
- apiGroups: ["apps"]
  resources:
    - replicasets
  verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: filebeat
  namespace: kube-elasticsearch
  labels:
    k8s-app: filebeat
rules:
  - apiGroups:
      - coordination.k8s.io
    resources:
      - leases
    verbs: ["get", "create", "update"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: filebeat-kubeadm-config
  namespace: kube-elasticsearch
  labels:
    k8s-app: filebeat
rules:
  - apiGroups: [""]
    resources:
      - configmaps
    resourceNames:
      - kubeadm-config
    verbs: ["get"]
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: filebeat
  namespace: kube-elasticsearch
  labels:
    k8s-app: filebeat

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-filebeat-rbac.yaml

clusterrolebinding.rbac.authorization.k8s.io/filebeat created

rolebinding.rbac.authorization.k8s.io/filebeat created

rolebinding.rbac.authorization.k8s.io/filebeat-kubeadm-config created

clusterrole.rbac.authorization.k8s.io/filebeat created

role.rbac.authorization.k8s.io/filebeat created

role.rbac.authorization.k8s.io/filebeat-kubeadm-config created

serviceaccount/filebeat created

九、部署Logstash

1、创建Logstash的configmap

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-logstash-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: logstash-configmap
  namespace: kube-elasticsearch
data:
  logstash.yml: |
    http.host: "0.0.0.0"
    path.config: /usr/share/logstash/pipeline
  logstash.conf: |
    input {
      kafka {
        bootstrap_servers => "kafka-0.kafka.kube-elasticsearch.svc.cluster.local:9092,kafka-1.kafka.kube-elasticsearch.svc.cluster.local:9092,kafka-2.kafka.kube-elasticsearch.svc.cluster.local:9092"
        topics => ["filebeat"]
        codec => "json"
      }
    }
    filter {
      date {
        match => [ "timestamp" , "dd/MMM/yyyy:HH:mm:ss Z" ]
      }
    }
      output {
        elasticsearch {
          hosts => ["elasticsearch-master:9200"]
          user => "elastic"
          password => "Aa123456"
          index => "kubernetes-%{+YYYY.MM.dd}"
      }
    }

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-logstash-configmap.yaml

configmap/logstash-configmap created

2、创建Logstash的Deployment

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-logstash-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: logstash-deployment
  namespace: kube-elasticsearch
spec:
  selector:
    matchLabels:
      app: logstash
  replicas: 1
  template:
    metadata:
      labels:
        app: logstash
    spec:
      containers:
      - name: logstash
        image: docker.elastic.co/logstash/logstash:7.17.6
        ports:
        - containerPort: 5044
        volumeMounts:
          - name: config-volume
            mountPath: /usr/share/logstash/config
          - name: logstash-pipeline-volume
            mountPath: /usr/share/logstash/pipeline
          - mountPath: /etc/localtime
            name: localtime
      volumes:
      - name: config-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.yml
              path: logstash.yml
      - name: logstash-pipeline-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.conf
              path: logstash.conf
      - hostPath:
          path: /etc/localtime
        name: localtime

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-logstash-deployment.yaml

deployment.apps/logstash-deployment created

3、创建Logstash的Service

[root@cmp-k8s-dev-master01 kube-elasticsearch]# vim kube-elasticsearch-logstash-svc.yaml

apiVersion: v1
kind: Service
metadata:
  name: logstash-service
  namespace: kube-elasticsearch
spec:
  selector:
    app: logstash
  type: NodePort
  ports:
  - protocol: TCP
    port: 5044
    targetPort: 5044
    nodePort: 30003

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl apply -f kube-elasticsearch-logstash-svc.yaml

service/logstash-service created

4、查看创建完成的资源清单

[root@cmp-k8s-dev-master01 kube-elasticsearch]# kubectl get all -n kube-elasticsearch

NAME READY STATUS RESTARTS AGE

pod/elasticsearch-master-0 1/1 Running 0 18h

pod/elasticsearch-master-1 1/1 Running 0 18h

pod/elasticsearch-master-2 1/1 Running 0 18h

pod/filebeat-4qlmq 1/1 Running 0 23m

pod/filebeat-7722b 1/1 Running 0 23m

pod/filebeat-86dfp 1/1 Running 0 23m

pod/filebeat-c9cxr 1/1 Running 0 23m

pod/filebeat-rvvs5 1/1 Running 0 23m

pod/filebeat-tlmm7 1/1 Running 0 23m

pod/kafka-0 1/1 Running 0 68m

pod/kafka-1 1/1 Running 0 68m

pod/kafka-2 1/1 Running 0 67m

pod/kibana-7489b785c5-h22zw 1/1 Running 0 17h

pod/logstash-deployment-749d4fd95c-p6rs7 1/1 Running 0 3m13s

pod/zookeeper-0 1/1 Running 0 85m

pod/zookeeper-1 1/1 Running 0 85m

pod/zookeeper-2 1/1 Running 0 85m

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

service/elasticsearch-master NodePort 172.10.95.136 <none> 9200:30000/TCP 18h

service/kafka NodePort 172.10.252.178 <none> 9092:30001/TCP 80m

service/kibana-service NodePort 172.10.103.201 <none> 5601:30002/TCP 17h

service/logstash-service NodePort 172.10.120.74 <none> 5044:30003/TCP 5m28s

service/zookeeper NodePort 172.10.20.238 <none> 2181:30004/TCP 119m

NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE

daemonset.apps/filebeat 6 6 6 6 6 <none> 26m

NAME READY UP-TO-DATE AVAILABLE AGE

deployment.apps/kibana 1/1 1 1 17h

deployment.apps/logstash-deployment 1/1 1 1 3m13s

NAME DESIRED CURRENT READY AGE

replicaset.apps/kibana-7489b785c5 1 1 1 17h

replicaset.apps/logstash-deployment-749d4fd95c 1 1 1 3m13s

NAME READY AGE

statefulset.apps/elasticsearch-master 3/3 18h

statefulset.apps/kafka 3/3 68m

statefulset.apps/zookeeper 3/3 85m

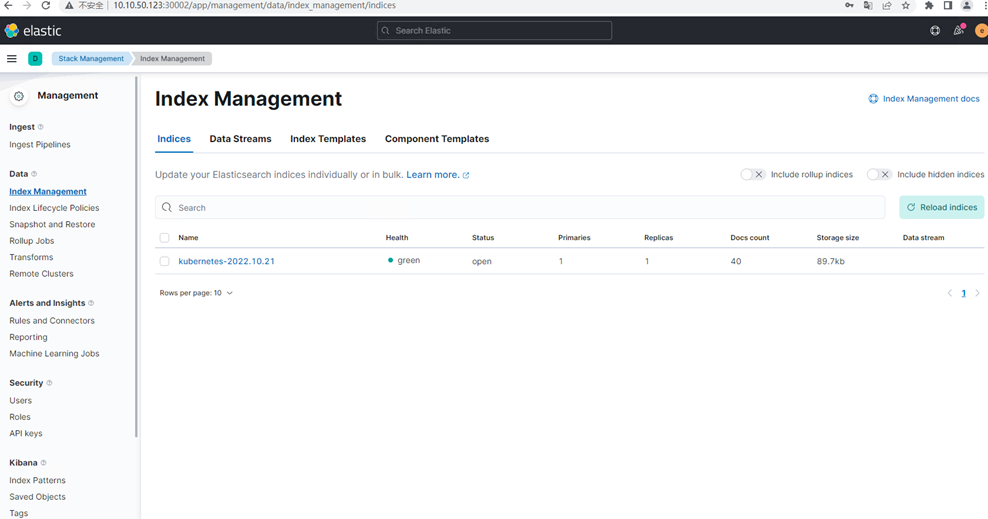

可以看到，所有的资源都是正常运行的。这时候我们打开kibana页面，检查索引是否已经创建成功。

5、访问Kibana

1）浏览器输入http://10.10.50.123:30002/，输入账号和密码登录

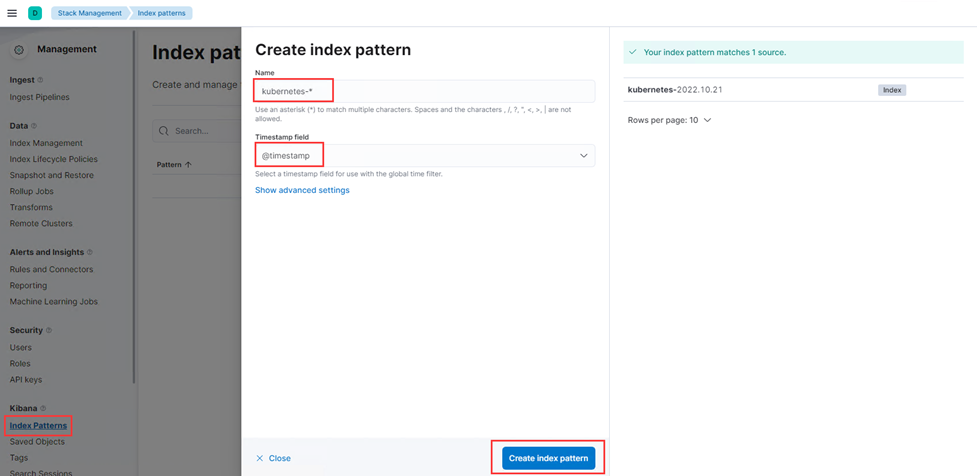

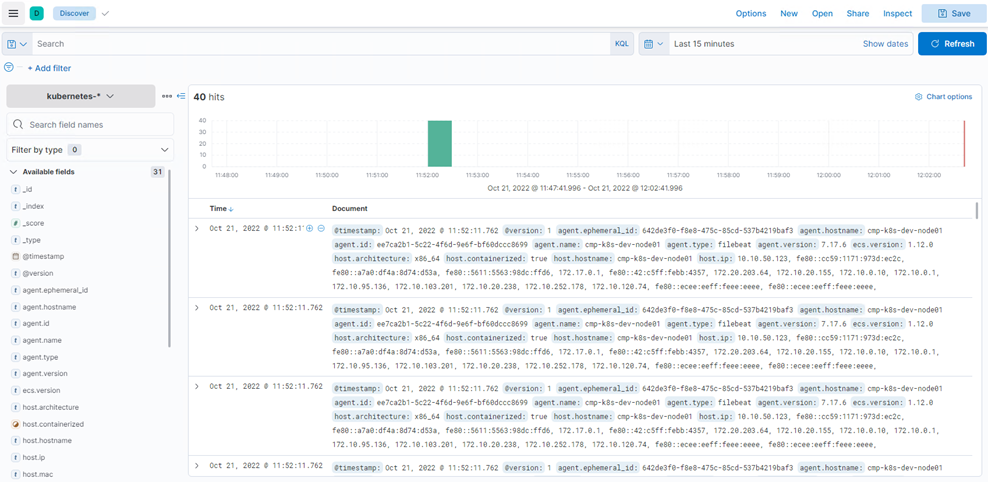

2）创建索引模式，查看数据

至此，K8s部署ELK集群完毕。
